Roboguard

The portable, place anywhere, pet friendly intruder alarm system

The roboguard is a stand alone, wireless automatic outdoor intruder security system using passive infrared sensor beams that detect movement up to 20 meters away in an 110° arc. Each guard has two sensors one on top and one at the bottom, each emitting 11 beams, a top and bottom beam have to be broken within half a second to trigger an alert. This effectively eliminates false alarms caused by dogs, birds and plants.

Stand Alone Pet Friendly Alarm System

Being stand alone and wireless, the ROBOGUARD can also tag along on camping or fishing trips to protect your expensive gear while you are enjoying yourself.

The ROBOGUARD communicates with a receiver called the HQ up to 400 meters away to inform you where an intruder has broken the beam and also reports to the HQ every 20 minutes to verify its signal, battery and operational status. If the guard is tampered with, and alarm is triggered as well.

Integrate with Your Existing Alarm System

Even as a stand-alone alarm system, the ROBOGUARD  can be fully integrated into any existing systems to activate the siren or call your armed response. Separate garages and outbuildings can also be covered conveniently and wirelessly*.

Monitor & Control via SMS

The ROBOGUARD  system even has applications that can incorporate the ability to monitor and control the system by SMS, so you will know what is happening around your house no matter where you are in the world.

*Some wiring may be necessary depending on requirements of the system to be installed.

FAQ's

What distance does a Roboguard cover?

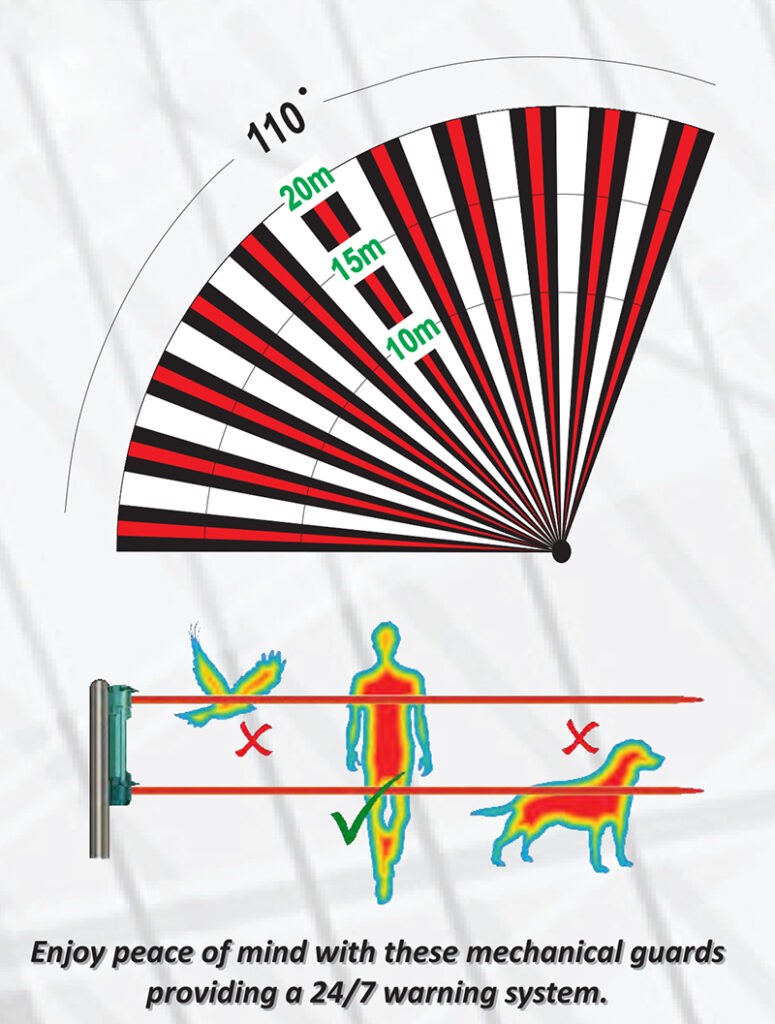

Roboguard uses two passive infrared sensors that fan out to cover an area of 110° at a radius of 20 meters. This equates to 2 X 11 beams, one every 10 degrees that will cover an area of 400 square meters.

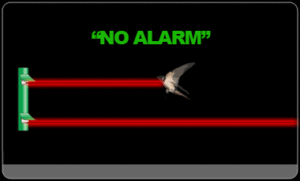

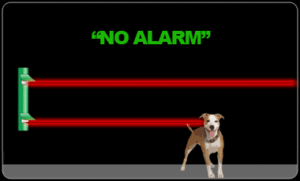

Can dogs/cats set it off?

No, there are two PIR’s (sensors) that need to be triggered before an intruder is recognised. To avoid the animal from triggering the Roboguard you simply install the bottom PIR at the height of the dog’s tail. So no matter how big your animal is, it will never set it off.

Can you have more than one HQ working with the same Roboguards?

Yes, each Roboguard carries an individual code, which is learned into the HQ. To set up more that one HQ with a set of Roboguards it is simple a procedure of learning the Roboguards into the HQ’s as they are added.

Do you need two Roboguards facing each other?

No, Roboguard is not like the conventional active beams that shine a single beam to a reflector on the other side of your property. Roboguard picks up heat movement in front of it so you will only need one Roboguard per area.

Does a plant trigger a Roboguard?

In most cases plants do not give too many problems, but larger leaves like a palm sitting in direct sunlight may cause false alarms. To solve this, Roboguards wireless nature allows you to simple screw it off the wall and relocate it to a different position even if it is just a meter to the left. Blocking off may also eliminate beams and this will allow you to stop the Roboguard from being triggered by the single problem plant, without having to move it.

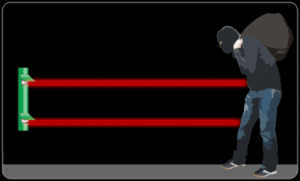

How do the beams work?

Roboguard uses two passive infrared sensors that will pick up any heat movement and determine whether it is a human. In order to trigger a Roboguard you have to break both the top and bottom beam, which minimises false alarms to almost zero. There is an array of 11 beams covering an area of 110° at a radius of 20 meters.

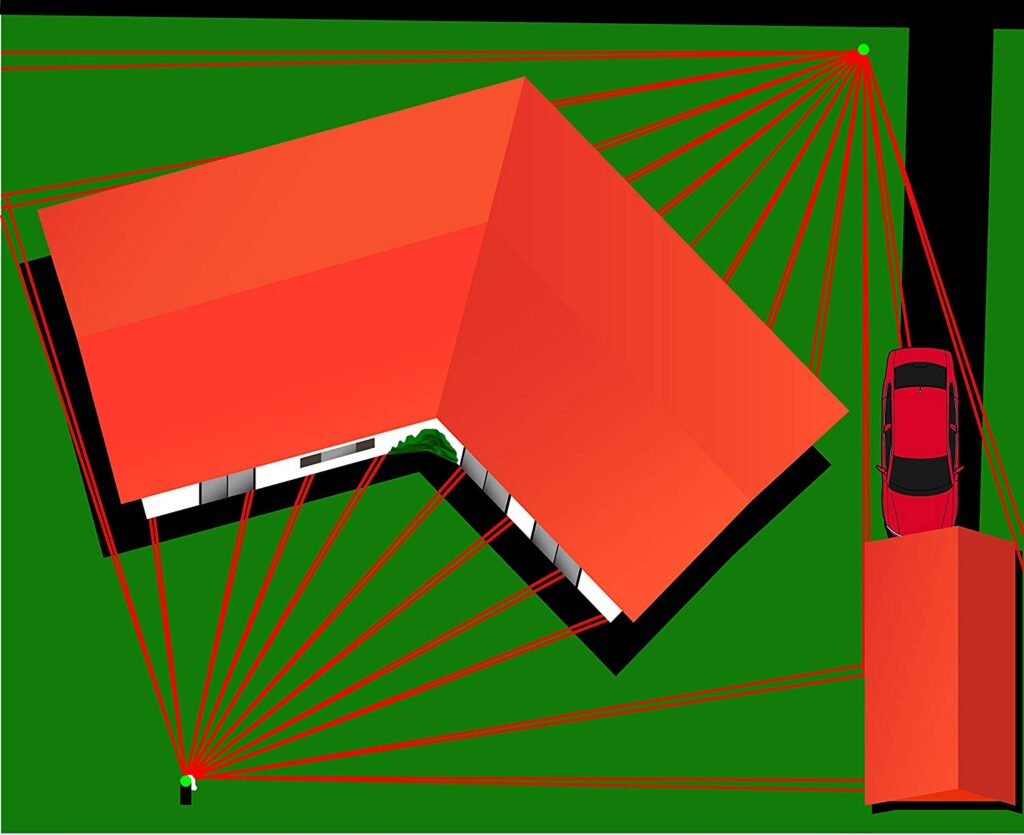

How do you protect the maximum area?

There are only so many entry points to a property and only so many vulnerable spots on your house. The idea is to catch the intruder between the two so that your family may have the crucial seconds to react against the unwelcome visitor before he smashes your window. It is best to have a look at your property and determine where the intruder will come from and where he is going. For example stop him before he gets to your car in your driveway or put a Roboguard to look after the windows at your bedroom.

How do you switch off a Roboguard?

It is as simple as pushing the desired zone button on the HQ and the light will go off, indicating that the Roboguard is now switched off. Do take note though that after a Roboguard has been triggered, the corresponding light on the HQ will start flashing indicating the zone/s Roboguard triggered. In this case you have to push the button once first so that the light is solid and once more to switch off the light and the corresponding Roboguard. To switch it on again press the button again and it will be back on.

How far can the HQ be from the Roboguards?

All Roboguards are tested up to 400 meters away from the HQ line-of-sight.

How long do the batteries last?

Roboguard uses eight C-size batteries (torch batteries) that will last three to five years although some have lasted up to 8 years. The HQ will alert you when the batteries need replacing by flashing the trouble light.

Is the Roboguard waterproof and UV stable?

Roboguards are made out of a Poly-carb ABS blend and not only is it 100% waterproof against rain it also carries a lifetime warranty against UV damage. Do not however spray a sprinkler directly onto a Roboguard, the speed of the water may penetrate the housing and damage the electronics.

What is the HQ?

Our HQ is the head quarters that will alert you to which Roboguard has been triggered. It will beep the zone amount of times (1 to 4) for each Roboguard, giving you the capability of determining which Roboguard triggered without getting up to check the zone on the HQ.

What are the Power packs used for?

The Power Pack: This is a multiple output 1.3 AH battery back up system which supplies the charge to the HQ and also translates the signals from the HQ to activate the siren/strobe; buzzer; panic output to your current armed response and so on.
